JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
  • Nome
  • Nome
  • Nome
  • Nome
  • Nome
  • Nome

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation

Quantidade mínima: 1
preço: $7.90-9.90
Informação de detalhes
Descrição do produto
Informações pormenorizadas
Lugar de origem
Jiangsu, China
Marca
Bextremeshell
Número do modelo
JYQD-V6.3E2
Modelo No.:
JYQD-V6.3E2
Entrada de energia:
12-36Vdc
Poder nominal:
350W
MAX POWER:
500W
Corrente máxima:
15a
Algoritmos de controle:
onda quadrada
Dimensões:
63 mm x 36,5 mm x 17mm
Controle de velocidade:
PWM/0-5V
Feedback de velocidade:
Sim
Temperatura de trabalho:
-10°C a 60°C
Frequência PWM:
1K-20KHz
Ciclo de dever de PWM:
0-100%
Amplitude PWM:
5V
Distância da porta de controle:
2,54 mm
Distância da porta de energia:
3.96mm
Destacar:

500W BLDC motor driver

,

15A BLDC driver board

,

BLDC motor speed regulator

Descrição do produto
JYQD-V6.3E2 BLDC Motor Driver

500W power brushless DC motor driver with speed regulation function, widely used in electric vehicles and industrial applications.

Product Specifications
Attribute Value
Accessory Type Motor driver
For Use With BLDC motor
Technical Parameters
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 0
  • Model No.: JYQD-V6.3E2
  • Power Input: 12-36VDC
  • Rated Power: 350W
  • Suitability: Sensorless motor
  • Max Power: 500W
  • Max Current: 15A
  • Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
  • Control Algorithms: Square wave
  • Dimensions: 63mm × 36.5mm × 17mm
  • Speed Control: PWM/0-5V
  • Speed Feedback Signal Output: Yes
  • Working Temperature: -10℃ to 60℃
Applications

The JYQD-V6.3E2 BLDC motor driver board is designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy for various applications:

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 1 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 2 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 3
  • Electric skateboards & scooters
  • Electric wheelchairs & hoverboards
  • Drones & RC vehicles
  • Industrial robots & automation
  • CNC machines & conveyor systems
  • Consumer electronics & appliances

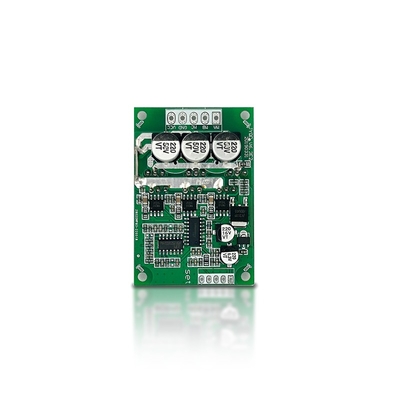

Product Appearance
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 4 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 5 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 6 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 7
Application Guidelines
  1. Confirm motor voltage and power parameters are within specified range
  2. Driver board requires proper ventilation; heatsink recommended for motors above 100W
  3. 5V output port is only for speed adjustment components, not external power equipment
Wiring Instructions
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 8
Control Port:
5V - Internal output for speed adjustment
Z/F - Rotation direction control
VR - Speed control (0.1V-5V or PWM)
Signal - Speed pulse output
GND - Control ground

Power Port:
MA/MB/MC - Motor phases
VCC/GND - DC power input
  • Use shielded wires for distances over 50cm from motor
  • Control port spacing: 2.54mm; Power port spacing: 3.96mm
  • Ensure proper insulation between MOSFET and heatsink
Dimensions
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 9
Manufacturing Process
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 10 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 11 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 12 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 13 JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 14
Packaging

The BLDC motor driver is securely packed in an individual anti-static bag for protection during shipping and storage.

Frequently Asked Questions
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation 15
What is the lead time?

Samples: 5 days
Mass orders: 2-3 weeks

What is the minimum order quantity?

1 set for all series products

What is the warranty period?

12 months from delivery date

What technical support is available?

We provide one-on-one service and technical support
